Detonation & Denoising

Inspiration

Covariance matrices are commonly used in finance. We utilize them to conduct regressions, evaluate risks, optimize portfolios, run Monte Carlo simulations, discover clusters, reduce the dimensionality of a vector space, and so on. Empirical covariance matrices are calculated using a sequence of observations from a random vector to estimate the linear comovement between the random variables that comprise the random vector. Because these observations are limited and nondeterministic, the estimated covariance matrix contains some noise. Empirical covariance matrices constructed from estimated factors are similarly numerically ill-conditioned, as the estimated factors are also based on incorrect data. Unless we address this noise, it will influence the covariance matrix computations, perhaps rendering the study meaningless.

Here, we attempt to describe a method for minimizing noise and boosting signals in an empirical covariance matrix. We will presume that empirical covariance and correlation matrices have been treated to this approach throughout this Element.

The Marcenko-Pastur Theorem is a mathematical theorem.

Consider a matrix $X$ of independent and identically distributed random observations with a size of $T x N$ and an underlying process with a mean of zero and a variance of $\sigma^{2}$. The matrix $C=T^{-1} X^{\prime} X$ has eigenvalues $\lambda$ that asymptotically converge (as $N \rightarrow+\infty$ and $T \rightarrow+\infty$ with $1<T_{N}<+\infty$ ) to the Marcenko-Pastur probability density function (PDF),

where $\lambda_{+}=\sigma^{2}(1+\sqrt{N / T})^{2}$ is the greatest predicted eigenvalue and $\lambda_{-}=\sigma^{2}(1-\sqrt{N / T})^{2}$ is the least expected eigenvalue. When $\sigma^{2}=1$, the correlation matrix associated with $X$ is $C$. The Marcenko-Pastur PDF is implemented in Python by Code Snippet $2.1$.

Eigenvalues $\lambda \in\left[\lambda_{-}, \lambda_{+}\right]$are consistent with random behavior, and eigenvalues $\lambda \notin\left[\lambda_{-}, \lambda_{+}\right]$are consistent with nonrandom behavior. Specifically, we associate eigenvalues $\lambda \in\left[0, \lambda_{+}\right]$with noise. Figure $2.1$ and Code Snippet $2.2$ demonstrate how closely the Marcenko-Pastur distribution explains the eigenvalues of a random matrix $X$.

SNIPPET $1$ MARCENKO-PASTUR THEOREM TESTING

Figure 1 depicts the Marcenko-Pastur theorem.

is Loading ...

Signal Random Matrix

Not all eigenvectors in an empirical correlation matrix are necessarily random. Because Code Snippet $2$ generates a covariance matrix that is not totally random, its eigenvalues will only approximate the Marcenko-Pastur PDF. Only numberFactors have some signal among the numberColumns random variables that comprise the covariance matrix formed by randomCov. To further dilute the signal, we combine it with a random matrix with an alpha weight.

Marcenko-Pastur Distribution Fitting

In this case, we use the technique proposed by Laloux et al (2000). Because random eigenvectors only account for a portion of the variance, we may alter $\sigma^{2}$ in the previous equations accordingly. For example, if we assume that the eigenvector associated with the greatest eigenvalue is not random, we should substitute $\sigma^{2}$ in the earlier equations with $\sigma^{2}\left(1-\lambda_{+} / N\right)$. In reality, we may get the implied $\sigma^{2}$ by fitting the function $f[\lambda]$ to the empirical distribution of eigenvalues. This yields the variance explained by the random eigenvectors in the correlation matrix, as well as the cutoff level $\lambda_{+}$, adjusted for nonrandom eigenvectors.

Snippet 3 applies the Marcenko-Pastur PDF on a random covariance matrix with the signal. The fit aims to identify the $\sigma^{2}$ value that minimizes the sum of squared discrepancies between the analytical PDF and the kernel density estimate (KDE) of the observed eigenvalues (for references on KDE, see Rosenblatt 1956; Parzen 1962). The value $\lambda_{+}$ is reported as eMax0, $\sigma^{2}$ is saved as var0, and the number of factors is retrieved as $numberFactors0$.

SNIPPET $2$ TO A RANDOM COVARIANCE MATRIX ADD SIGNAL

View More: Julia | Python

SNIPPET 3 FItTING THE MARCENKO–PASTUR PDF

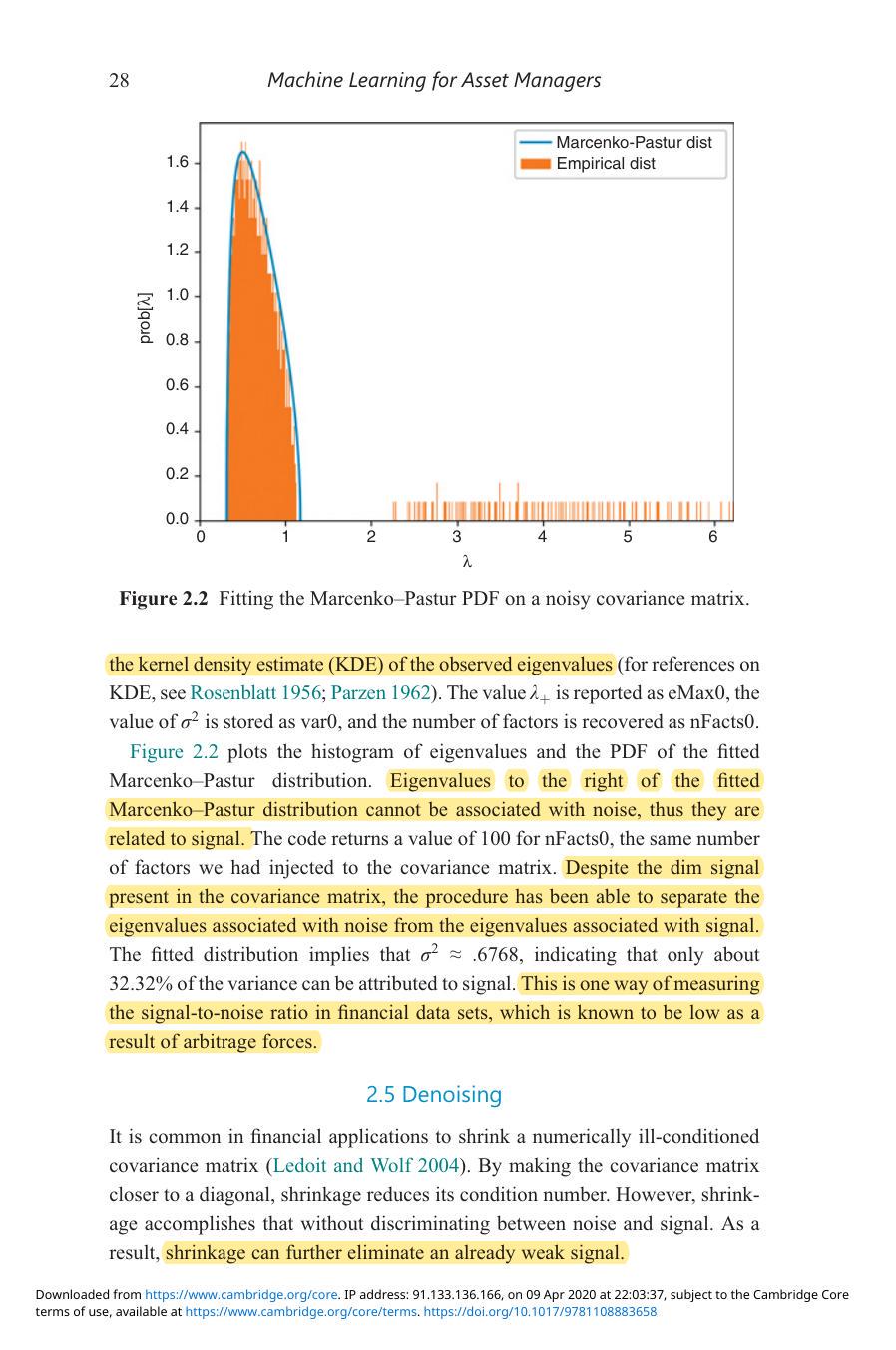

Fitting the Marcenko-Pastur PDF to a noisy covariance matrix (Figure 2).

Figure $2$ depicts the eigenvalue histogram and PDF of the fitted Marcenko-Pastur distribution. Eigenvalues to the right of the fitted Marcenko-Pastur distribution cannot be linked with noise. Hence they must be connected to the signal. The code returns 100 for $numberFactors0$, the same number of factors we injected into the covariance matrix. Despite a weak signal in the covariance matrix, the technique was able to distinguish the eigenvalues associated with noise from the eigenvalues associated with the signal. The fitted distribution predicts $\sigma^{2} \approx .6768$, implying that the signal accounts for just approximately $32.32 \%$ of the variance. This is one method of calculating the signal-to-noise ratio in financial data sets, which is well known to be poor due to arbitrage effects.

Denoise

Shrinking a numerically ill-conditioned covariance matrix is popular in financial applications (Ledoit and Wolf 2004). Shrinkage minimizes the condition number of the covariance matrix by bringing it closer to a diagonal. Shrinkage, however, does this without distinguishing between noise and signal. As a result, shrinkage might amplify an already weak signal. In the previous section, we learned how to differentiate between eigenvalues associated with noise components and eigenvalues related to signal components. This section will look at how to use this information to denoise the correlation matrix.

Method of Constant Residual Eigenvalues

This approach consists in setting a constant eigenvalue for all random eigenvectors. Let $\left\{\lambda_{n}\right\}_{n=1, \ldots, N}$ be the set of all eigenvalues, ordered descending, and $i$ be the position of the eigenvalue such that $\lambda_{i}>\lambda_{+}$and $\lambda_{i+1} \leq \lambda_{+}$. Then we set $\lambda_{j}=1 /(N-i) \sum_{k=i+1}^{N} \lambda_{k}, j=i+1, \ldots, N$, hence preserving the trace of the correlation matrix. Given the eigenvector decomposition $V W=W \Lambda$, we form the denoised correlation matrix $C_{1}$ as

The apostrophe (') transposes a matrix, and diag[.] zeroes all non-diagonal elements of a squared matrix. The second transformation is used to rescale the matrix $\widetilde{C}_{1}$ so that the major diagonal of $C_{1}$ is an array of $1 \mathrm{~s}$. This technique is implemented by Code Snippet $4$. Figure $3$ compares the logarithms of the eigenvalues before and after this denoising approach.

DENOISING SNIPPET 4 BY CONSTANT RESIDUAL EIGENVALUE

is Loading ...

Figure 3 compares eigenvalues before and after the residual eigenvalue approach was applied.

Shrinkage on Demand

Because it reduces noise while keeping the signal, the numerical technique described previously is better for shrinkage. Alternatively, we might limit the shrinkage application to random eigenvectors. Take a look at the correlation matrix. $C_{1}$

where $W_{R}$ and $\Lambda_{R}$ are the eigenvectors and eigenvalues associated with $\left\{n \mid \lambda_{n} \leq \lambda_{+}\right\}, W_{L}$ and $\Lambda_{L}$ are the eigenvectors and eigenvalues associated with $\left\{n \mid \lambda_{n}>\lambda_{+}\right\}$, and $\alpha$ regulates the amount of shrinkage among the eigenvectors and eigenvalues associated with noise ( $\alpha \rightarrow 0$ for total shrinkage). This technique is implemented by Code Snippet $5$. Figure $4$ compares the logarithms of the eigenvalues before and after this denoising approach.

Figure 4 compares eigenvalues before and after the targeted shrinking strategy was used.

DENOISING SNIPPET 5 BY TARGETED SHRINKAGE

Until Here

Detoning
